Home / Angular Contact Ball Bearing / Angular Contact Ball Bearing NSK 7211A

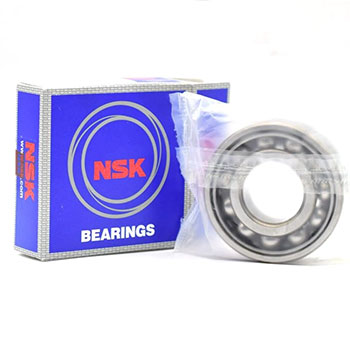

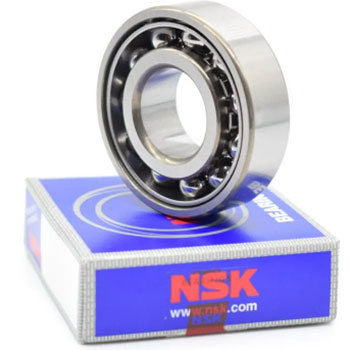

Angular Contact Ball Bearing NSK 7211A

Angular contact ball bearings NSK7211A have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads

Tel:+86-18865270578

Angular Contact Ball Bearing NSK 7211A

Basic Info
Model NO.7211ASeparatedUnseparated
Precision RatingP2 P4 P5 P6 P0VibrationZ1V1, Z2V2, Z3V3; Z4V4
ApplicationMachineryMOQ1PC
SampleAvaliablePackageTube/Color Box/Carton/Pallet
Delivery Time2-3daysPayment WayWest Union/ T/T/Paypal/LC ect.
OEMAvaliableFeatureLong Life, Low Noise
TrademarkSKF NSK NTN KOYO TIMKEN SNR NACHI HCH URBTransport PackageOriginal
SpecificationmmOriginFrance/Japan/USA/China
HS Code8482103000
bearing NO. Size 15º 25º
Limiting Speed Limiting Speed
ID OD B Loading rating Grease & Oil Loading rating Grease & Oil
Cr   Cor Grease   Oil Cr   Cor Grease   Oil
7003 17 35 10 6.7   4.9 44000   66000 6.4   4.7 39000  59000
7004 20 42 12 9.6   6.3 37000   55000 9.2   6.0 33000   49000
7005 25 47 12 12.9   8.7 33000   49000 12.3   8.3 29000   44000
7006 30 55 13 15.7   11.6 27000   42000 14.9   10.9 23000   37000
7007 35 62 14 19.3   17.5 19000   33000 10.4   10.3 19000   33000
7008 40 68 15 19.9   19.1 18000   31000 18.9   18.2 16000   27000
7009 45 75 16 26.7   25.3 16000   27000 25.4   24.1 15000   25000
7010 50 80 16 27.6   27.5 15000   25000 26.2   26.2 14000   23000
7011 55 90 18 36.7   37.1 13000   21000 34.8   35.3 12000   19000
7012 60 95 18 37.8     40 13000   21000 35.8   38 11000   18000
7013 65 100 18 38.9   42.9 12000   19000 36.8   40.7 10000   17000
7014 70 110 20 49.9   55.5 11000   18000 47.2   52.7 9000     16000
7015 75 115 20 51.3   59.2 10000   17000 48.5   56.2 8500     15000
7016 80 125 22 61.6   70.4 9000   16000 58.3   66.9 8000     14000
7017 85 130 22 63.6     75 8500   15000 59.9   71.3 7500     13000
7018 90 140 24 66.9     84 8000   14000 63.2   79.7 7000     12000
7019 95 145 24 79.1   97.6 7500   13000 74.8   92.7 6500     11000
7020 100 150 24 81.2   103.3 7000   12000 76.7   9.8 6000     10000
7021 105 160 26 93.9   118.2 6500   11000 88.8   112.2 6000     10000
7022 110 170 28 110.4   139.8 6000   10000 104.4   132.8 5700     9000
7024 120 180 28 112.7   148.7 6000   10000 106.3   141.1 5700     9000
7026 130 200 33 144.8   190.8 5700     9000 136.8   181.0 5000     8000
7028 140 210 33 148.7   202.6 5000     8000 140.4   192.2 4600     7500
7030 150 225 35 168.4   232.5 4600     7500 159.1   220.6 4000     6500

Bearing NO. Principal dimensions Speed ratings(r/min) Basic load ratings (kg)
d D B / C / T Grease Oil Dynamic(kN) Static(kN) Mass
7000AC 10 26 8 5 2.35 34000 42000 0.021
7000C 10 26 8 5.3 2.45 47000 62000 0.021
7001AC 12 28 8 5.4 2.75 29000 37000 0.024
7001C 12 28 8 5.8 2.95 40000 54000 0.024
7002AC 15 32 9 6.1 3.45 26000 32000 0.035
7002C 15 32 9 6.6 3.7 35000 47000 0.035
7003AC 17 35 10 6.75 4.15 23000 28000 0.045
7003C 17 35 10 7.3 4.45 31000 41000 0.045
7004AC 20 42 12 10.3 6.1 19000 24000 0.079
7004C 20 42 12 11.1 6.6 26000 35000 0.079
7005AC 25 47 12 11.3 7.4 17000 21000 0.091
7005C 25 47 12 12.3 8 23000 30000 0.091
7006AC 30 55 13 14.5 10.1 14000 18000 0.133
7006C 30 55 13 15.8 11 20000 26000 0.133
7007AC 35 62 14 17.5 12.6 12000 15000 0.17
7007C 35 62 14 19.1 13.7 17000 22000 0.17
7008AC 40 68 15 18.7 14.6 11000 14000 0.21
7008C 40 68 15 20.5 15.9 15000 20000 0.21
7009AC 45 75 16 22.2 17.7 10000 12000 0.26
7009C 45 75 16 24.4 19.3 14000 18000 0.26
7010AC 50 80 16 23.6 20.1 9200 11000 0.29
7010C 50 80 16 26 21.9 13000 17000 0.29
7011AC 55 90 18 31.1 26.3 8300 10000 0.42
7011C 55 90 18 34.1 28.6 11000 15000 0.42
7012AC 60 95 18 31.9 28.1 7700 9700 0.45
7012C 60 95 18 35 30.6 11000 14000 0.45
7013AC 65 100 18 33.7 31.4 7200 9000 0.47
7013C 65 100 18 37.1 34.3 10000 13000 0.47
7014AC 70 110 20 42.7 39.4 6600 8300 0.66
7014C 70 110 20 46.9 43 9200 12000 0.66
7015AC 75 115 20 43.6 41.7 6300 7800 0.69
7015C 75 115 20 48 45.6 8700 11000 0.69
7016AC 80 125 22 53.4 50.6 5800 7200 0.93
7016C 80 125 22 58.7 55.3 8000 11000 0.93
7017AC 85 130 22 54.6 53.7 5500 6800 0.97
7017C 85 130 22 60.1 58.7 7600 10000 0.97
7018AC 90 140 24 65.2 63.3 5100 6400 1.26
7018C 90 140 24 71.7 69.1 7100 9400 1.26
7200AC 10 30 9 4.65 2.2 29000 37000 0.031
7200C 10 30 9 5 2.35 40000 54000 0.031
7201AC 12 32 10 7.45 3.65 27000 34000 0.038
7201C 12 32 10 7.9 3.85 38000 50000 0.038
7202AC 15 35 11 8.1 4.25 24000 29000 0.048
7202C 15 35 11 8065 4.55 33000 43000 0.048
7203AC 17 40 12 10.2 5.5 21000 26000 0.07
7203C 17 40 12 10.9 5.9 29000 38000 0.07
7204AC 20 47 14 14.5 8.4 17000 22000 0.112
7204B 20 47 14 13.3 7.7 13000 17000 0.112
7204C 20 47 14 15.5 9 24000 32000 0.112
7205AC 25 52 15 15.3 9.5 15000 19000 0.135
7205B 25 52 15 14 8.7 12000 15000 0.135
7205C 25 52 15 16.6 10.2 21000 28000 0.135
7206AC 30 62 16 21.3 13.7 13000 16000 0.208
7206B 30 62 16 19.4 12.5 9600 13000 0.208
7206C 30 62 16 23 14.7 18000 24000 0.208
7207AC 35 72 17 28.1 18.6 11000 14000 0.295
7207B 35 72 17 25.6 17 8300 11000 0.295
7207C 35 72 17 30.4 20.1 15000 20000 0.295
7208AC 40 80 18 33.6 23.3 10000 12000 0.382
7208B 40 80 18 30.6 21.3 7500 10000 0.382
7208C 40 80 18 36.4 25.2 14000 18000 0.382
7209AC 45 85 19 37.7 26.6 9400 12000 0.43
7209B 45 85 19 34.3 24.3 7000 9400 0.43
7209C 45 85 19 40.8 28.7 13000 17000 0.43
7210AC 50 90 20 39.4 41.3 8500 11000 0.485
7210B 50 90 20 37.535.7 26.7 6400 8500 0.485
7210C 50 90 20 42.8 31.8 12000 16000 0.485
7211AC 55 100 21 48.7 37.1 7600 9500 0.635
7211B 55 100 21 44.1 33.8 5700 7600 0.635
7211C 55 100 21 52.9 40.2 11000 14000 0.635
7212AC 60 110 22 58.9 45.7 6900 8600 0.82
7212B 60 110 22 53.4 41.6 5100 6900 0.82
7212C 60 110 22 64 49.5 9500 13000 0.82
7213AC 65 120 23 67.3 54.2 6400 8000 1.02
7213B 65 120 23 60.9 49.3 4800 6400 1.02
7213C 65 120 23 73.1 58.7 8900 12000 1.02
7214AC 70 125 24 69.8 55.6 6100 7600 1.12
7214B 70 125 24 63.2 50.6 4600 6100 1.12
7214C 70 125 24 75.9 60.2 8400 11000 1.12
7215AC 75 130 25 79.2 65.2 5800 7200 1.23
7215B 75 130 25 71.7 59.3 4300 5800 1.23
7215C 75 130 25 86.1 70.6 8000 11000 1.23
7216AC 80 140 26 85.3 71.5 5400 6700 1.5
7216B 80 140 26 77.1 65 4000 5400 1.5
7216C 80 140 26 92.8 77.5 7500 9900 1.5
7217AC 85 150 28 98.6 83.6 5000 6300 1.87
7217B 85 150 28 89.2 76 3800 5000 1.87
7217C 85 150 28 107 90.6 7000 9200 1.87
7218C 90 160 30 123 105 6500 8600 2.3
7305B 25 62 17 22.9 13.3 10000 14000 0.243
7306B 30 72 19 27.6 17.4 8700 12000 0.362
7307B 35 80 21 32.5 20.2 7700 10000 0.475
7308B 40 90 23 39.7 25.2 6900 9200 0.657
7309B 45 100 25 50.6 34.1 6200 8200 0.875
7310B 50 110 27 64.4 44.3 5500 7300 1.14
7311B 55 120 29 74.3 52 5000 6700 1.45
7312B 60 130 31 84.9 60.3 4600 6200 1.81
7313B 65 140 33 96.1 69.3 4300 5800 2.22
7314B 70 150 35 108 78.9 4000 5400 2.7
7316B 80 170 39 127 100 3500 4700 3.85
7317B 85 180 41 137 112 3300 4400 4.53
7408B 40 110 27 64.9 40.4 5200 7200 1.23
7410B 50 130 31 90.2 60.4 4400 6000 1.92
7412B 60 150 35 119 86.7 3700 5100 2.85
7408BM 40 110 27 - - - - 1.41
7416ACM 80 200 48 - - - - 7

Application :

Angular Contact Ball Bearing NSK 7211A Bearings are mainly used in Construction Machinery, Machine Tools, Automobiles, Metallurgy, Mining, Petroleum, Machinery, Electricity, Railways, and other Industries, we Gaoyuan company sells Angular Contact Ball Bearing NSK 7211A with most Competitive price and quality assurance, all aspects of services, do everything to meet customer demand

Packing:

PE bag+ paper box+ outer carton+ wooden box+ pallet, or as customers' requirement

Delivery :

We Gaoyuan Bearing Company welcome big and small order all the time, for big quantity will be delivery by sea, small orders according the bearing quantity, we delivery the bearing by air or by international express DHL,FEDEX,UPS,EMS etc. For large stock Bearing distributor, we will delivery the order fast and timely.

As a Professional Bearing Exporter and Distributor, Gaoyuan Bearing is dealing with Brand Bearings and OEM bearing, including SKF, NSK, FAG, NTN, TIMKEN, KOYO, URB, etc., Types include Ball Bearings, Roller Bearings, GAOYUAN Bearing stocks thousands kinds of Bearings for sale,Adhering the competitive prices and fast delivery.our bearing sells best to Europe, Southeast Asia, South America, Africa, and the Middle East. e.g. German, Italy, Canada, Mexico, Brazil, Indonesia, Malaysia, etc. if you have problems about selecting proper bearings for your special applications, please contact us right now E-MAIL:admin@gyzcbearings.com
