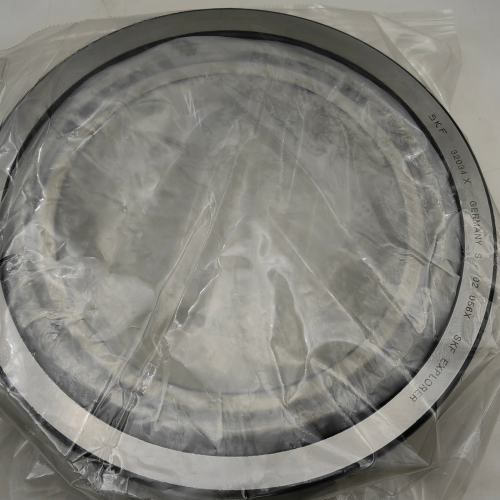

‌SKF 32034 Taper Roller Bearing ‌

‌1. Basic Specifications‌

• ‌Type‌: Single-row tapered roller bearing ‌.
• ‌Dimensions‌:
  • Bore diameter (d): 170 mm .
  • Outer diameter (D): 260 mm ‌.
  • Thickness (B): 57 mm ‌.
• ‌Load Capacity‌:
  • Dynamic load rating: 512 kN ‌.
  • Static load rating: 915 kN ‌.

‌2. Design Features‌

• ‌Structure‌: Optimized for combined radial and axial loads, with tapered rollers for high rigidity ‌.
• ‌Material‌: Precision-engineered alloy steel for durability ‌.
• ‌Speed Limits‌:
  • Oil lubrication: Up to 2200 rpm ‌.
  • Grease lubrication: Up to 1700 rpm ‌.

‌3. Applications‌

• ‌Industrial Machinery‌: Heavy-duty gearboxes, mining equipment, and power transmission systems ‌.
• ‌Transportation‌: Truck axles and construction machinery components ‌.
• ‌Manufacturing‌: Metal processing, rolling mills, and high-load rotating equipment ‌.

‌4. Variants‌

• ‌Modified Models‌: Includes variants like 32034X (designated for specific sealing or material enhancements) ‌.
• ‌Cross-Compatibility‌: Dimensionally aligns with other brands (e.g., NSK, NTN) for interchangeability in industrial drivetrains ‌.

‌5. Key Advantages‌

• ‌High Load Capacity‌: Suitable for shock and heavy-duty loads ‌.
• ‌Precision Performance‌: Supports preload adjustment for optimized alignment in critical applications ‌.
